All Casambi products form automatically a wireless mesh network. The lighting can be controlled via smartphones, tablets, smart watches, push buttons, switches or Casambi’s Wireless Wall Switch. Smart control can even be achieved from old wall switches.
With Casambi you can:
- Dim the lighting
- Group luminaires
- Configure, save and recall scenes
- Configure, save and recall animations
- Use the Schedule to recall scenes or animations based on time and date
- Adjust colours
- Adjust colour temperatures
- Use motion sensors
- Take pictures from your spaces and add lighting control directly to your picture
- Take sunrise and sunset into account while defining timers
- Get status information from the system
- Update the firmware over-the-air
- daylight scenes
- over-the-internet-via-gateway
- configure control points (push buttons, Xpress, Rotary switches, Smart Switches)
- CBU-ASD
- CBU-TED
- CBU-PWM4
- Xpress
- iOS App
- Android App
CBU-ASD Control Unit
CBU-ASD is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured either as analog 0-10V (and 1-10V) or digital Standalone DALI control interface.
When the output is configured as Standalone DALI1, CBU-ASD acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB) or color temperature, while keeping the wiring and number of components at their minimum.
CBU-ASD is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 4.0 protocol. Devices form automatically a secure wireless mesh network so that a large number of xtures can be controlled from any point. No external gateway module is needed. CBU-ASD can be controlled also from a standard on/o wall switches.
Features
- Wirelessly controllable
- No need for an external gateway device
- Forms automatically a fast wireless mesh network
- Very small form factor for luminaire installation
- Configurable analog/digital output
- Analog output: 0-10V sinking/sourcing
- Digital output: Standalone DALI
- Easily implemented RGB and color temperature controls
- Controllable switched mains output
- Dimming from standard on/off wall switches
- Device firmware can be updated over-the-air
- Casambi cloud service enhances user experience

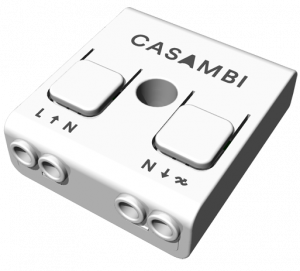

CBU-TED Bluetooth controllable dimmer
CBU-TED is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamps, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed.
CBU-TED is able to control up to 150 W. The maximum permissible load varies according to di erent load types.
CBU-TED can be controlled with Casambi app, available for iOS and Android devices, as well as with traditional wall switches. The Casambi app can be downloaded free of charge from Apple App Store and Google Play Store.
Di erent Casambi enabled products can be used as a simple one luminaire direct control to a complete and full featured light control system where up to 127 units form automatically an intelligent mesh network.
CBU-PWM4 Bluetooth controllable dimmer
CBU-PWM4 is a Bluetooth controllable, Casambi enabled four channel PWM dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.
CBU-PWM4 can control up to four channels making it an ideal partner for RGBW and tunable white (TW) applications. The maximum combined output current is 6 A which can be freely divided between 1 -4 channels. CBU-PWM4 is protected against overvoltage, overcurrent and short circuit situations.
CBU-PWM4 can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.
Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 127 units form automatically an intelligent mesh network.
Xpress is a wireless user interface that can be configured via the Casambi app. The four target buttons can control a scene or an animation of the user’s choise or simply one luminaire, one luminaire group or all lamps together if so desired.
Xpress has buttons for dimming. By once tapping the ‘dim down’ button the chosen luminaire or luminaire group will go to 0%. When the ‘dim up’ button is once tapped the luminaire or luminaire group will instead go to 100%. By holding one of the dim-buttons the luminaire or luminaire group will dim smoothly.
Xpress has also up/down buttons that can either control the colour temperature if the luminaire in question has a tunable white- option or the up/down ratio if the luminaire in question has vertical control options. For the colour temperature control a tap on the ‘up’ button will set the colour temperature to the luminaire’s warmest colour level as well as a tap on the ‘down’ button to the coldest colour level. By holding the buttons the colour temperature will change smoothly in steps of 25 Kelvin. For the vertical control the ‘up’ button will dim the indirect lighting up and the direct lighting down, while the ‘down’ button will dim the direct lighting up and the indirect lighting down. The sum of the indirect and direct ratio is always 100%.
Xpress comes with a wall mounting plate. The switch can be attached to the plate as it isequipped with magnets.
Features
- Luminaire control
- Group control
- Control all luminaires
- Recall Scenes
- Recall Animations
- Smooth dimming
- Change of colour temperature
- Change of indirect/direct lighting ratio
Compatible with
- Minimum: Android 4.4 KitKat devices with Bluetooth 4.0 support.
- Recommended: Android 5.0 Lollipop or later devices with Bluetooth 4.0 support.
