CTEK NJORD GO -charger

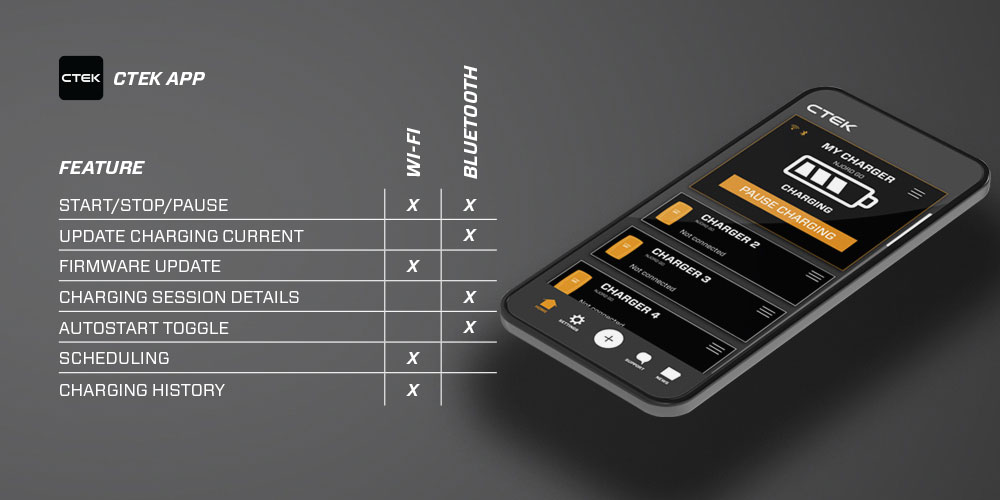

Ctek Njord ® Go is a portable 11kW EV charger that gives you fast, reliable Electric Vehicle (EV) charging at home, or when you’re on the move. The charger can be used with the Ctek App to unlock additional features, for complete charging control and monitoring via your mobile phone.
Fast, portable charging for your Electric Vehicle

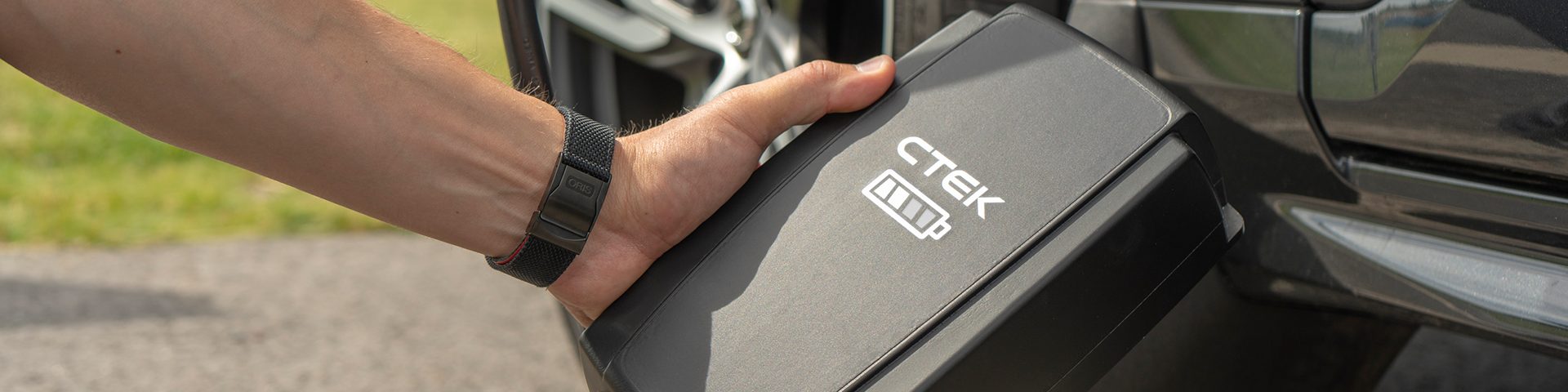

NJORD® GO from CTEK is a durable, lightweight and portable EV charger available with a Type 2 connector, with a charging capacity up to 11kW. It comes with fixed heavy duty 1.5m long mains cable and 5m EV charging cable, so there’s no installation necessary – simply plug the unit into your domestic or commercial CEE socket for charging. The charger’s user interface clearly indicates charge status. A free to download CTEK APP gives you total control over charging and charge scheduling directly from your Android or iOS mobile phone. The NJORD® GO features state of the art natural convection cooling technology, so you can charge at high power even when the ambient temperature is high.
- NJORD GO
- Technical data
- App
- Documents
- Accessories
- Can be wall mounted with optional wall mount kit.
- LED interface.
- Fully functioning across temperature range from -30 °C to +50 °C.
- Case dimensions: 140mm x 250mm x 80mm.
- Protection class IP65.
- Two-year warranty.
CTEK NJORD GO
| ARTICLE NUMBER | 40-353 |
| CHARGING METHOD | Mode 2 |
| CHARGING CATEGORY | AC charging |
| VEHICLE CONNECTOR | Type 2 |
| MAINS CONNECTOR | CEE 16 A/400 V 5P |
| NUMBER OF PHASES | 3 Phase (Support for 1 phase and 2 phase charging) |
| CHARGING CURRENT | 6–16 A |
| CHARGING POWER | 1,4–11 kW |
| FREQUENCY | 50 hz |
| RATED VOLTAGE (INPUT) | 400 V |
| AMBIENT OPERATING TEMPERATURE | -30 °C - +50 °C |
| RELATIVE HUMIDITY | Up to 100 % at 25 °C |
| COOLING | Natural convection |
| GROUND FAULT DETECTION | Built-in ground fault detection, 30 mA AC, 6 mA DC |
| GROUND FAULT RESET | Semi-automatic* |
| ENERGY METER | Yes, Internal |
| POSITIONING | Portable, wall mounting (option) |
| ENCLOSURE DIMENSIONS (H X W X D) | 250 x 140 x 80 mm |
| ENCLOSURE MATERIAL | Plastic, Metal |
| ENCLOSURE COLOR | Black |
| FIXED CHARGING CABLE LENGTH | 5 m |
| MAINS CABLE LENGTH | 1,5 m |
| NET WEIGHT (UNIT WITH CABLES) | 4,3 kg |
| PACKAGING WEIGHT | 4,9 kg |
| PACKAGING SIZE (L X W X H) | 435 x 375 x 95 mm |
| USER INTERFACE | LED symbols |
| CONNECTIVITY | Bluetooth, WiFi |
| COMPATIBILITY MAINS | TN-net |
| APP SUPPORT | CTEK app for Android and IOS |
| INGRESS PROTECTION | IP65 |
| COMPLIANCE | CE, IEC 61851-1, IEC 62196, IEC 62752, EN 60335-1 |
| WARRANTY | 2 years |

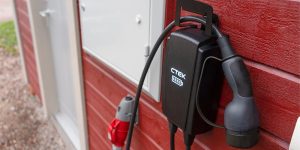

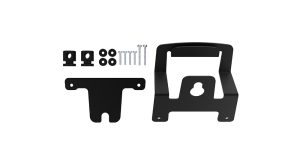

NJORD® GO WALL MOUNT is secure, lockable storage for your NJORD® GO, for easy access to the EVSE & neat cable storage.
Part no 40-388
