Ctek Chargestorm ® Connected 2 is a state of the art EV charger specifically designed to be safe and easy to use. It’s ideal for home, business, public parking and tenant-owner housing associations, and it meets all the required technical safety standards. Ctek Chargestorm EV charger is available in several different power and outlet/charging cable models. An Ethernet cable connects the EV charger to the internet. If Ethernet cannot be used, the unit can also be supplied with an optional 3G/4G modem. Internet connection is required for portal services and app management. Ctek Chargestorm supports integration with all major operators in electric car charging.

With the app you can do the following:

Scheduling – Start/Stop
History, data and software update
Set current and charging power in real time
Tag management (RFID)
Selection of LED-brightness on the Wallbox
See power for active charging session

More features and improvements in the app will be released on a regular basis.

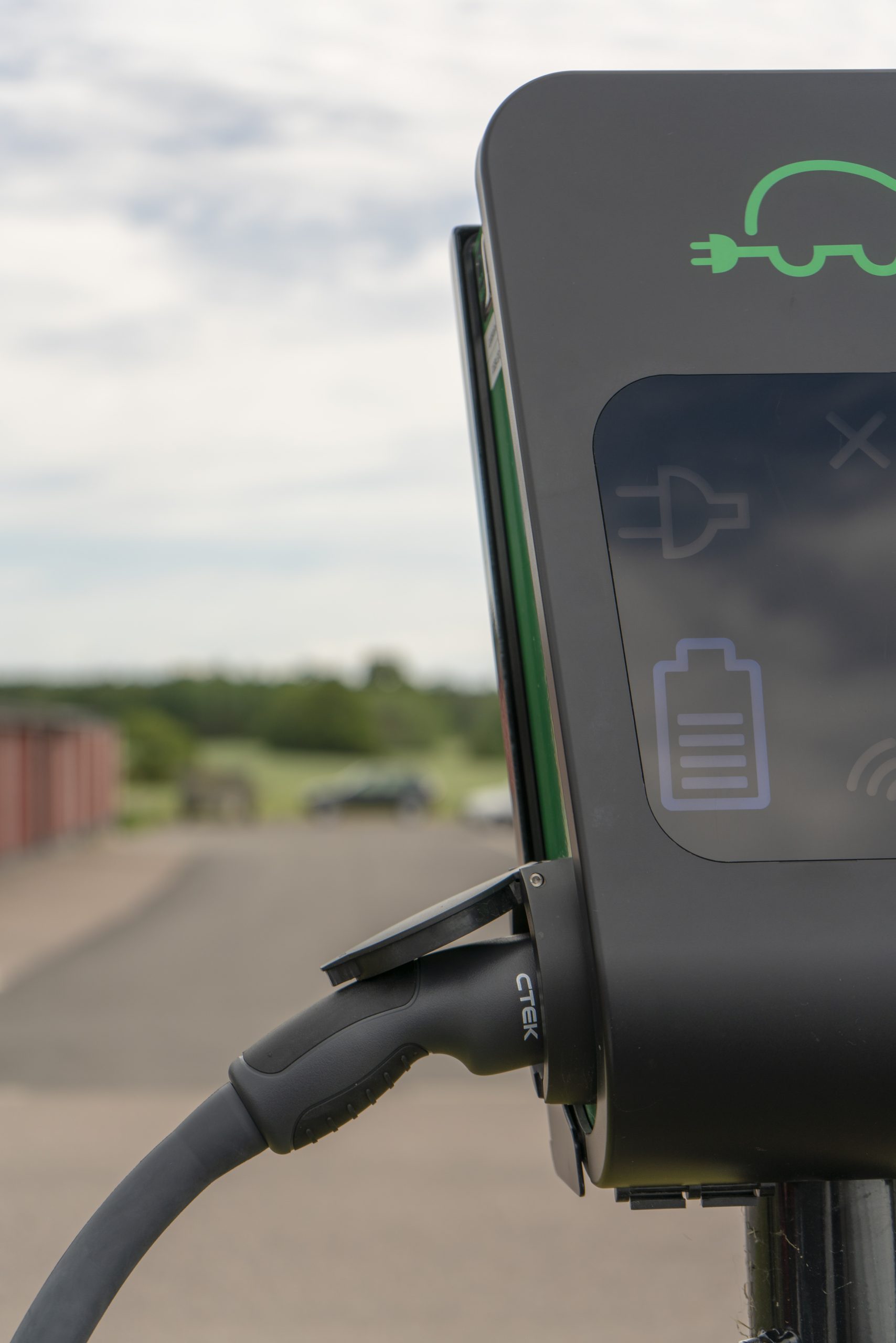

CHARGESTORM® CONNECTED 2
Technical data
Documents

Adjustable charging power via app or software
NanoGrid™ dynamic load balancing support
Built-in fuse, AC and DC ground fault detection built-in energy meter
Easy installation and lock protected for maintenance
Wall or pole mounted
Ambient operating temperature from -30 °C to +50 °C
RFID reader
OCPP 1.5/1.6
IP54 and IK10
2-year warranty

Loading mode	Mode 3
Charging category	AC charing
Outlet*	Single- or dual type 2 outlets
Locking actuator (type 2 outlet)*	Yes
Fixed charging cable*	One fixed, straight charging cable/Two fixed straight charging cables. Option 1: extra long straight cable (7,5 m). Option 2: fixed coiled cable.
Vehicle connector*	Type 2
Mounting	Wall or pole mounted
Load balancing*	Load balancing (NANOGRID™ Internal) is included between the dual charging points of the EV charger. Options for other load balancing solutions between several units (NANOGRID™ Home, NANOGRID™ Local, NANOGRID™ CTEK Grid Central).
Energy meter	MID (standard)
Number of phases*	1 phase / 3 phase
Charging current*	6-32 A
Charging power*	1,4 - 22 kW
Frequency	50 Hz
Rated voltage (Input)*	230 / 400 V
Power input connector*	16 mm2 terminal block
Ambient operating temperature	-30 °C to +50 °C
Relative humidity	Up to 100% at 25 °C
Altitude	<2000 m
Weight*	Max 24 kg
Enclosure dimensions (H x W x D)	449 x 282 x 160 mm
Enclosure material	Plastic, metal
Enclosure color (metal)	Green
Enclosure color (plastic)	Black
Enclosure lock	Key
Ground fault detection	Built-in ground fault detection, 30 mA AC, 6 mA DC
Ground fault reset	Semi-automatic
Authentication	RFID, App
RFID reader	Yes
RFID tag standard	ISO15693, ISO14443A (MIFARE)
Communication protocol	OCPP 1.5/1.6
User interface	LED symbols
Connectivity	3G; 4G; Ethernet
App support	Smartphone display; Taking Charge App for Android and IOS (requires that the EV charger is connected to the cloud service Charge portal)
Compatibility mains	IT-net, TN-net
Compliance	CE, IEC 61851-1, IEC 62196-2, IEC 61439-7
Approval	Download the Declaration of Conformity from WWW.CTEK.COM
Degree of protection	IP54
Impact protection	IK10
Warranty	2 vuotta
* Depends on model
